Manifold Pressure & Fuel Flow Kit 30gph

MF200K30 Manifold Pressure & Fuel Flow Kit 30gph

The MF200 is an advanced, next generation manifold pressure and fuel flow combination instrument for flow rates up to 30gph.

Manifold pressure functionality is TSO'd and meets the pressure accuracy requirements of SAE AS8042.

Fuel flow functionality is TSO'd and meets the accuracy requirements of TSO C44c.

Functional displays include:

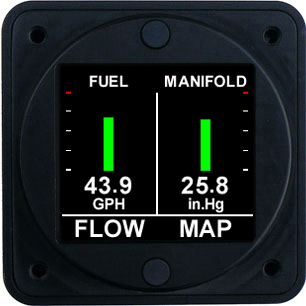

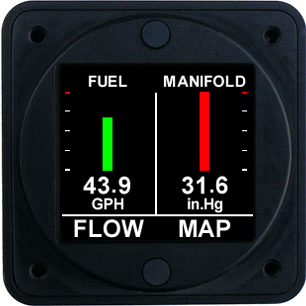

• Primary - Real-Time analog data depiction and digital value display for both manifold pressure and fuel flow

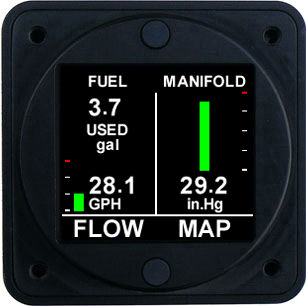

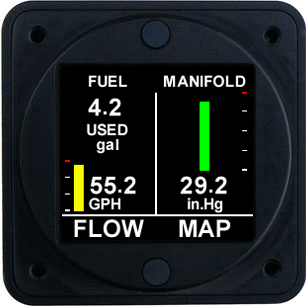

• Secondary - Real-Time analog data depiction and digital value display for both manifold pressure and fuel flow as well as fuel used

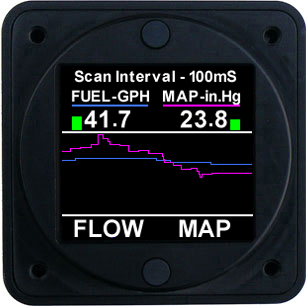

• Graphical trend display of manifold pressure and fuel flow data

The MF200K30 is TSO'd and STC'd as a primary replacement instrument under all flight conditions (day/night VFR and IFR).

This kit includes both an A200-PMP manifold pressure sensor and a A200-201A-6 fuel flow sensor for full functionality.

Certification / Compliance
TSO C45b and C44c
Canadian STC
FAA STC
Certified as primary replacement

Environmental
DO-160F A1CAASXXXXXXZBXXBBBCSBA1C11XXAX

Software
DO-178B

DC Power Source
Input voltage 6 to 36 VDC
Power consumption 100mA
Load dump tolerance +60V
Direct spike tolerance +/- 60V
Cable spike tolerance > +/- 1KV

Operating Temperature
Constant operating -15ºC to +55ºC
Short term operating (1hr) -40ºC to +70ºC
Storage -55ºC to +85ºC

Signal Input
Manifold Pressure: 0.5V to 3.0V
Fuel Flow: 5V pulse width modulated

Display Units
Manifold Pressure: 0.0 inHg to 50.0 inHg
Fuel Flow: 0.6 to 30gph
Fuel Used: 0.6 to 999.9 gallons

Accuracy
Manifold Pressure: AS8042 +/- 0.1inHg
Fuel Flow: +/- 0.1gph

Display
Sunlight readable LCD
80º Viewing angle from all directions
Internal and external intensity control

Annunciator Output
100mA sink with reverse EMF protection

Software Functionality

Interface Connector
DB-25

Dimensions
2.45” X 2.45” X 0.9”

Weight (excluding harness and sensors)
4.05 oz

Finish
Black anodized 6061 aluminum
