OPT200FK Oil Pressure, Oil Temperature, Fuel Pressure, Voltmeter & Ammeter Kit
The OPT200F is an advanced, next generation oil pressure, oil temperature, fuel pressure, ammeter/loadmeter and voltmeter combinational instrument.
Oil temperature functionality is TSO'd and STC'd and meets the temperature accuracy requirements of SAE AS8005, while oil and fuel pressure meets the requirements of TSO C47a and AS408C. Ammeter / loadmeter and voltmeter functions are STC'd

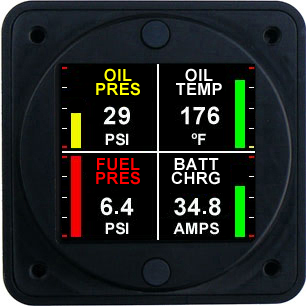

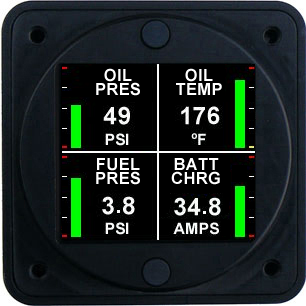

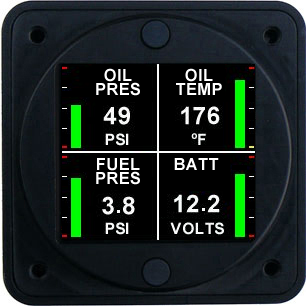

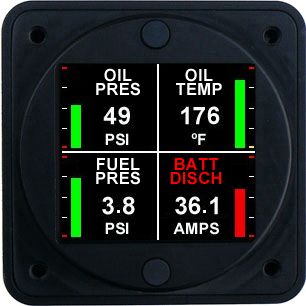

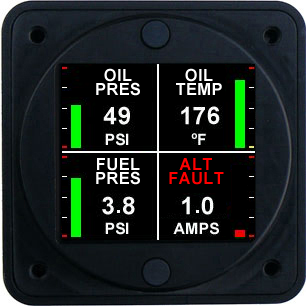

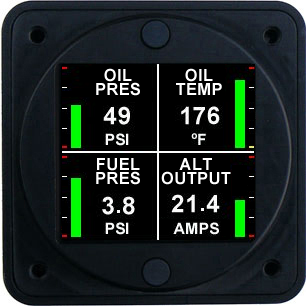

Functional displays include real-time analog data depiction and digital value display for all reported data.
The OPT200F is TSO'd and STC'd as a primary replacement instrument under all flight conditions (day/night VFR and IFR).

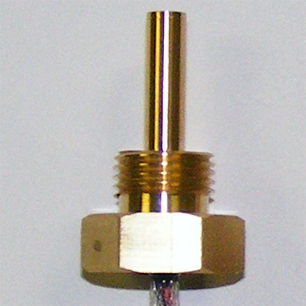

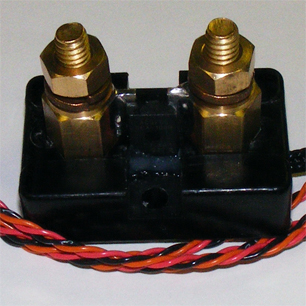

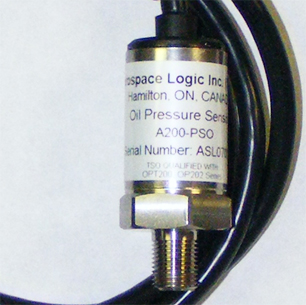

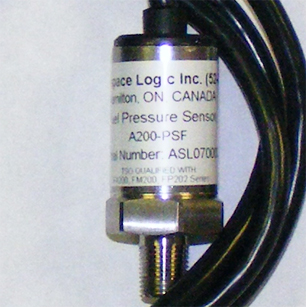

This kit includes complete wiring harness, an A200-TSO oil temperature sensor, an A200-PSO oil pressure sensor, an A200-PSF fuel pressure sensor and an A200-HAS hall effect current shunt, plus all installation hardware.
Certification / Compliance
TSO C43c and C47a
Canadian STC
FAA STC
EASA STC
Certified as primary replacement for all functions
Environmental
DO-160F A1CAASXXXXXXZBXXBBBCSBA1C11XXAX
Software
DO-178B
DC Power Source
Input voltage 6 to 36 VDC
Power consumption 100mA
Load dump tolerance +60V
Direct spike tolerance +/- 60V
Cable spike tolerance > +/- 1KV
Operating Temperature
Constant operating -15ºC to +55ºC
Short term operating (1hr) -40ºC to +70ºC
Storage -55ºC to +85ºC
Signal Input
Temperature: 0V to 3.0V
Pressure: 0.5V to 3.0V
Current: 0V to 3.0V
Display Units
Oil Temperature: 32ºF - 302ºF (User selectable ºF or ºC)
Oil Pressure: 0 - 125PSI
Fuel Pressure: 0 - 62.5PSI
Ammeter: +/- 100A
Voltmeter: 6V to 36V
Accuracy
Oil Temperature: AS8005 +/- 1% FS
Oil Pressure: AS408C +/- 1PSI
Fuel Pressure: AS408C +/- 0.25PSI
Ammeter: +/- 1A
Voltmeter: +/- 0.1V
Display
Sunlight readable LCD
80º Viewing angle from all directions
Internal and external intensity control
Annunciator Output
100mA sink with reverse EMF protection
Software Functionality
| Primary oil pressure, oil temperature, fuel pressure, voltmeter and ammeter |
Interface Connector
DB-25
Dimensions
2.45” X 2.45” X 0.9”
Weight (excluding harness)
4.05 oz
Finish
Black anodized 6061 aluminum
