OPT200VK Oil Pressure and Temperature Kit with Voltmeter

The OPT200V is an advanced, next generation oil pressure and temperature combinational instrument.

Oil temperature functionality is TSO'd and meets the temperature accuracy requirements of SAE AS8005, while oil pressure meets the requirements of TSO C47a and AS408C.

Functional displays include:

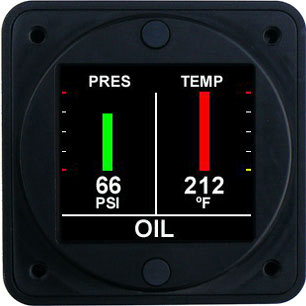

• Real-Time analog data depiction and digital value display for both pressure and temperature
  (Primary Option 1)

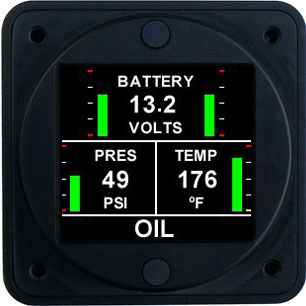

• Display with oil pressure, oil temperature and voltmeter (Primary Option 2)

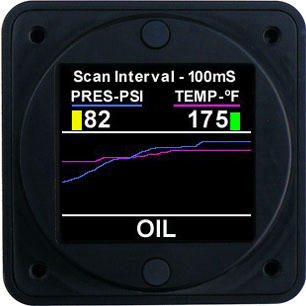

• Graphical trend display of both oil pressure and temperature data

The OPT200VK is TSO'd and STC'd as a primary replacement instrument under all flight conditions (day/night VFR and IFR).

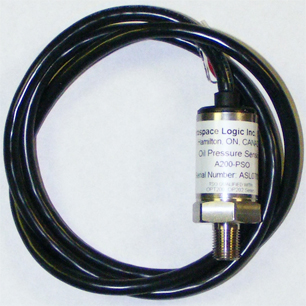

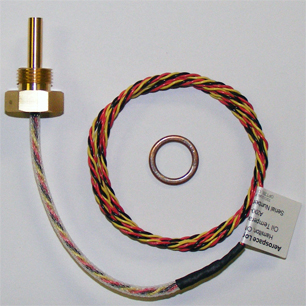

This kit includes an A200-TSO oil temperature sensor, an A200-PSO oil pressure sensor and all installation hardware.

Certification / Compliance
TSO C43c and C47a
Canadian STC
FAA STC
Certified as primary replacement

Environmental
DO-160F A1CAASXXXXXXZBXXBBBCSBA1C11XXAX

Software
DO-178B

DC Power Source
Input voltage 6 to 36 VDC
Power consumption 100mA
Load dump tolerance +60V
Direct spike tolerance +/- 60V
Cable spike tolerance > +/- 1KV

Operating Temperature
Constant operating -15ºC to +55ºC
Short term operating (1hr) -40ºC to +70ºC
Storage -55ºC to +85ºC

Signal Input
Temperature: 0V to 3.0V
Pressure: 0.5V to 3.0V

Display Units
Oil Temperature: 32ºF - 302ºF (User selectable ºF or ºC)
Oil Pressure: 0 - 125PSI
Voltmeter: 6.0V to 36V

Accuracy
Oil Temperature: AS8005 +/- 1% FS
Oil Pressure: AS408C +/- 1PSI
Voltmeter: +/- 0.1V

Display
Sunlight readable LCD
80º Viewing angle from all directions
Internal and external intensity control

Annunciator Output
100mA sink with reverse EMF protection

Software Functionality

Interface Connector
DB-25

Dimensions
2.45” X 2.45” X 0.96”

Weight (excluding harness)
4.05 oz

Finish
Black anodized 6061 aluminum
