OPT200K Oil Pressure and Temperature Kit
The OPT200 is an advanced, next generation oil pressure and temperature combinational instrument.
Oil temperature functionality is TSO'd and meets the temperature accuracy requirements of SAE AS8005, while oil pressure meets the requirements of TSO C47a and AS408C.
Functional displays include:

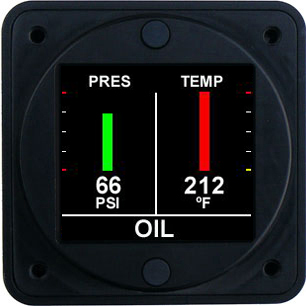

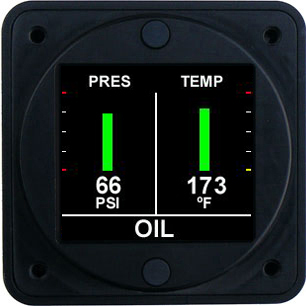

- Real-Time analog data depiction and digital value display for both pressure and temperature

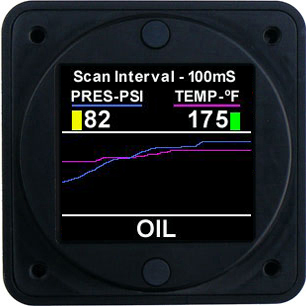

- Graphical trend display of both oil pressure and temperature data
The OPT200 is TSO'd and STC'd as a primary replacement instrument under all flight conditions (day/night VFR and IFR).

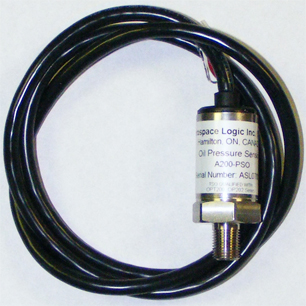

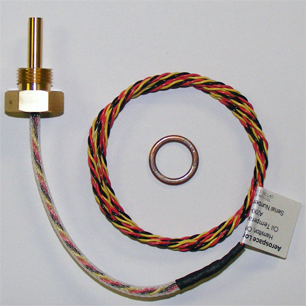

This kit includes an A200-TSO oil temperature sensor and an A200-PSO oil pressure sensor plus all installation hardware.
Certification / Compliance
TSO C43c and C47a
Canadian STC
FAA STC
Certified as primary replacement
Environmental
DO-160F A1CAASXXXXXXZBXXBBBCSBA1C11XXAX
Software
DO-178B
DC Power Source
Input voltage 6 to 36 VDC
Power consumption 100mA
Load dump tolerance +60V
Direct spike tolerance +/- 60V
Cable spike tolerance > +/- 1KV
Operating Temperature
Constant operating -15ºC to +55ºC
Short term operating (1hr) -40ºC to +70ºC
Storage -55ºC to +85ºC
Signal Input
Temperature: 0V to 3.0V
Pressure: 0.5V to 3.0V
Display Units
Oil Temperature: 32ºF - 302ºF (User selectable ºF or ºC)
Oil Pressure: 0 - 125PSI
Accuracy
Oil Temperature: AS8005 +/- 1% FS
Oil Pressure: AS408C +/- 1PSI
Display
Sunlight readable LCD
80º Viewing angle from all directions
Internal and external intensity control
Annunciator Output
100mA sink with reverse EMF protection
Software Functionality
| Primary: | Oil pressure and temperature |
| Trend Graph: | Graphic display of oil pressure and temperature |
Interface Connector
DB-25
Dimensions
2.45” X 2.45” X 0.9”
Weight (excluding harness)
4.05 oz
Finish
Black anodized 6061 aluminum
