MP202K Dual Manifold Pressure Kit
The MP202 is an advanced, next generation dual manifold pressure combinational instrument.
Manifold pressure functionality is TSO'd and meets the pressure accuracy requirements of SAE AS8042.

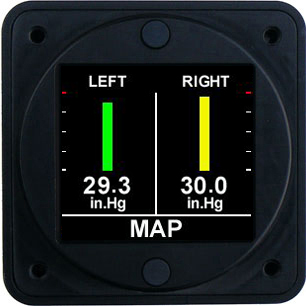

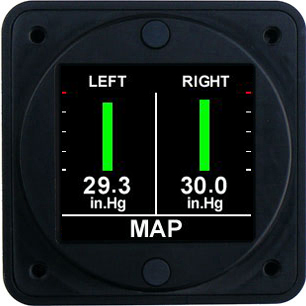

Functional displays include:
- Real-Time analog data depiction and digital value display for both left and right engines

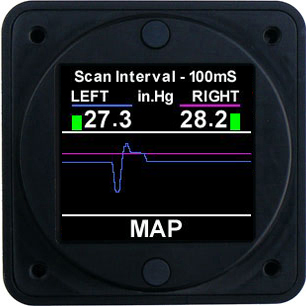

- Graphical trend display of both left and right manifold pressure data
The MP202K is TSO'd and STC'd as a primary replacement instrument under all flight conditions (day/night VFR and IFR).
This kit includes two A200-PMP manifold pressure sensors and all installation hardware.
Certification / Compliance
TSO C45b
Canadian STC
FAA STC
Certified as primary replacement
Environmental
DO-160F A1CAASXXXXXXZBXXBBBCSBA1C11XXAX
Software
DO-178B
DC Power Source
Input voltage 6 to 36 VDC
Power consumption 100mA
Load dump tolerance +60V
Direct spike tolerance +/- 60V
Cable spike tolerance > +/- 1KV
Operating Temperature
Constant operating -15ºC to +55ºC
Short term operating (1hr) -40ºC to +70ºC
Storage -55ºC to +85ºC
Signal Input
Pressure 0.5V to 3.0V
Display Units
Manifold Pressure: 0.0 inHg to 50.0 inHg
Accuracy
Manifold Pressure: AS8042 +/- 0.1inHg
Display
Sunlight readable LCD
80º Viewing angle from all directions
Internal and external intensity control
Annunciator Output
100mA sink with reverse EMF protection
Software Functionality
| Primary: | Left and right manifold pressure |
| Trend Graph: | Graphic display of left and right manifold pressure |
Interface Connector
DB-25
Software Functionality
Dimensions
2.45” X 2.45” X 0.9”
Weight (excluding harness)
4.05 oz
Finish
Black anodized 6061 aluminum
