Four Cylinder EGT with Turbine Inlet Temperature Kit and 2" Clamp Probes

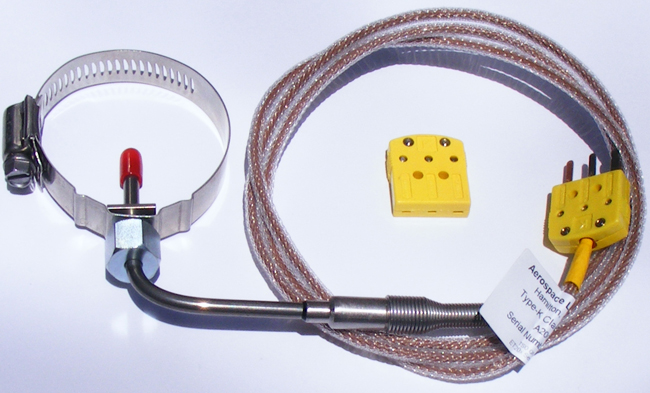

The ET204T is a full color EGT instrument that provides simultaneous, real-time display of all four cylinders and turbine inlet temperature. This kit includes four 2" clamp type probes and one bayonet turbine inlet temperature Type-K ungrounded thermocouple probe, all connectors and installation hardware.
Exhaust gas and turbine inlet temperature functionality is TSO'd and meets the temperature accuracy requirements of SAE AS8005 for a Class IIa (+/- 1%) instrument. Functional displays include:
- Real-time four cylinder and turbine inlet temperature display
- Menu select option for fast selection of display type
- Automated rich-of-peak (ROP) leaning function
- Automated lean-of-peak (LOP) leaning function
- Single cylinder and turbine inlet temperature monitoring while retaining graphic indications for all cylinders
- Graphic trend analysis and viewing of all cylinders and turbine inlet simultaneously
The ET204TP2 is TSO'd and STC'd as a primary replacement instrument under all flight conditions (day/night VFR and IFR).
Certification / Compliance
TSO C43c
Canadian STC
FAA STC
Certified as primary replacement
Environmental
DO-160F A1CAASXXXXXXZBXXBBBCSBA1C11XXAX
Software
DO-178B
DC Power Source
Input voltage 6 to 36 VDC
Power consumption 100mA
Load dump tolerance +60V
Direct spike tolerance +/- 60V
Cable spike tolerance > +/- 1KV
Operating Temperature
Constant operating -15ºC to +55ºC
Short term operating (1hr) -40ºC to +70ºC
Storage -55ºC to +85ºC
Signal Input
0.0V to 44.866mV, ungrounded Type-K thermocouple
Display Temperature Range
200ºF to 2000ºF
Accuracy
Temperature SAE AS8005 Class IIa +/- 1% FS
Display Units
ºF or ºC, user selectable
Display
Sunlight readable LCD
80º Viewing angle from all directions
Internal and external intensity control
Annunciator Output
100mA sink with reverse EMF protection
Interface Connector
DB-25
Software Functionality

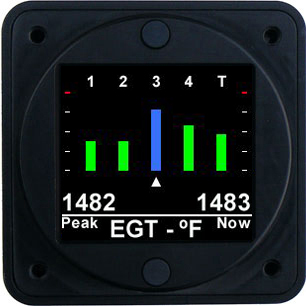

| Primary: | All cylinders with Min and Max and turbine inlet temperatures |

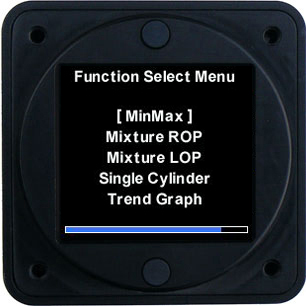

| Menu: | Function selection |
| ROP Leaning: | Lean engine rich-of-peak |

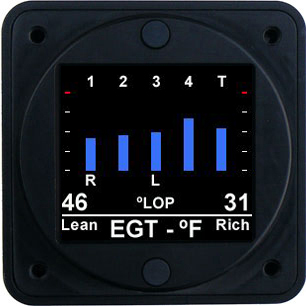

| LOP Leaning: | Lean engine lean-of-peak |

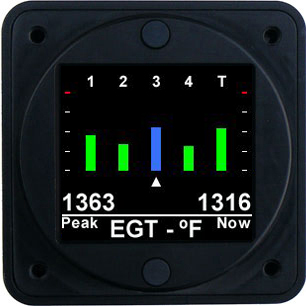

| Single Cylinder: | Display all cylinders and turbine inlet temperature, but monitor one |

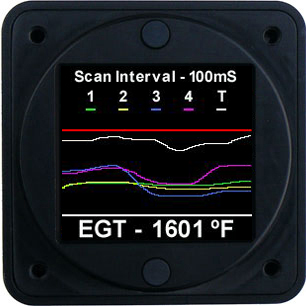

| Trend Graph: | Graphic display of all temperatures |
Dimensions
2.45” X 2.45” X 0.9”
Weight (excluding harness)
4.05 oz
Finish
Black anodized 6061 aluminum
