CA200CK Clock, Outside Air & Carburetor Temperature Kit
The CA200C is an advanced, next generation airborne timepiece plus unlimited input annuciator. It can scan any number of 200 Series instruments and report out-of-limit conditions the moment they occur; all on one instrument. Once identified, simply glance over the panel to view the exact cause for concern.
With the CA200C mounted either in or close to your primary panel scan you will reduce the need for consistent full panel scans and be automatically made aware of any condition requiring attention.
Using the same extremely accurate digital timebase as the CO200, it will provide precise time for years to come.
Outside air and carburetor air temperature functionality is TSO'd and meets the temperature accuracy requirements of SAE AS8005 for a Class IIa (+/- 1%) instrument. Functional displays include:

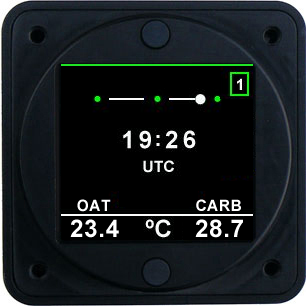

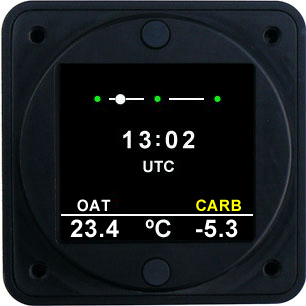

- UTC Time, OAT and carburetor temperature

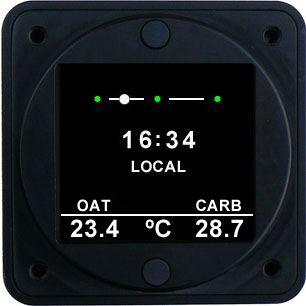

- Local Time, OAT and carburetor temperature

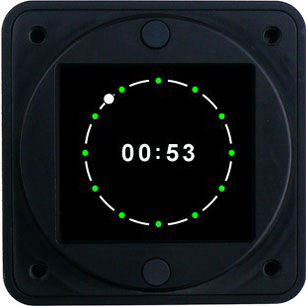

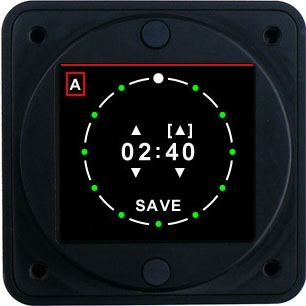

- Chronograph

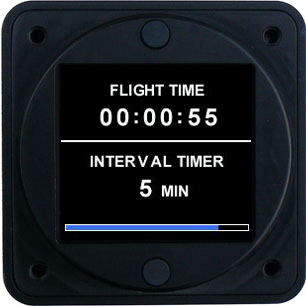

- Flight Time and Interval Timer

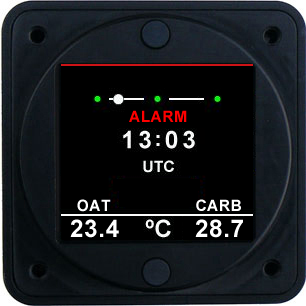

- Annunciator reporting
The CA200C is TSO'd and STC'd as a primary replacement instrument under all flight conditions (day/night VFR and IFR).
This kit includes both CA200C instrument, A200-TSA outside air temperature sensor and A200-TSC carburetor air temperature sensor.
Certification / Compliance
TSO C43c
Canadian STC
FAA STC
EASA STC
Certified as primary replacement
Environmental
DO-160F A1CAASXXXXXXZBXXBBBCSBA1C11XXAX
Software
DO-178B
DC Power Source
Input voltage 6 to 36 VDC
Power consumption 100mA
Load dump tolerance +60V
Direct spike tolerance +/- 60V
Cable spike tolerance > +/- 1KV
Operating Temperature
Constant operating -15ºC to +55ºC
Short term operating (1hr) -40ºC to +70ºC
Storage -55ºC to +85ºC
Signal Input
Temperature 0.0V to 3.0V
Wired-OR, active low, unlimited annunciator inputs
Display
Temperature -58ºF to 248ºF
Various time related
Accuracy
Temperature SAE AS8005 Class IIa +/- 1% FS
Clock 3.5ppm / < 2minutes/year
Display Units
ºF or ºC, user selectable
Display
Sunlight readable LCD
80º Viewing angle from all directions
Internal and external intensity control
Annunciator Output
100mA sink with reverse EMF protection
Interface Connector
DB-25
Software Functionality
Annunciator, warning activated from unlimited number of external inputs

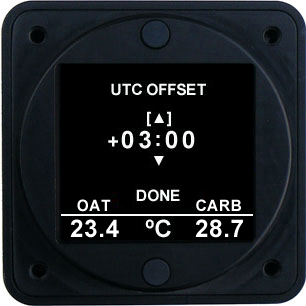

Primary Time 12/24 hour mode, UTC and Local
Chronograph 99 minutes 59 seconds
Flight Timer 99 hours 59 minutes 59 seconds
Interval Timer Set for multiples of 1 minute
Outside air and carburetor temperature
Dimensions
2.45” X 2.45” X 0.9”
Weight (excluding harness)
4.05 oz
Finish
Black anodized 6061 aluminum
