MT200K Manifold Pressure and Tachometer - Electronic Magneto Kit
The MT200 is an advanced, next generation manifold pressure and tachometer combination instrument.
Manifold pressure functionality is TSO'd and meets the pressure accuracy requirements of SAE AS8042. Tachometer functionality is TSO'd to C49b and accuracy requirements of AS404C.
Functional displays include:

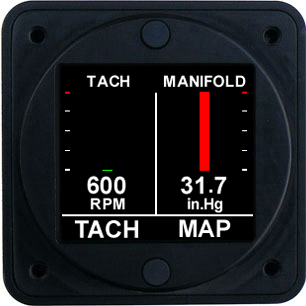

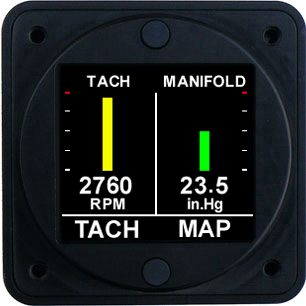

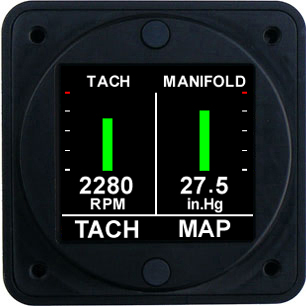

- Simultaneous, real-time analog data depiction and digital value display for both manifold pressure and tachometer.

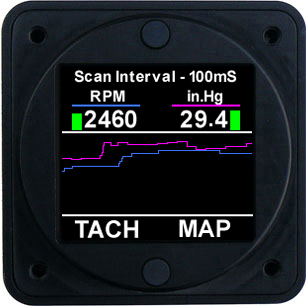

- Graphical trend display of both manifold pressure and tachometer data.

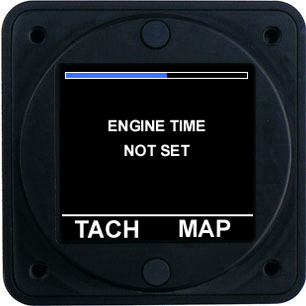

- Display and tracking of engine time.
The MT200 is TSO'd and STC'd as a primary replacement instrument under all flight conditions (day/night VFR and IFR).
This kit includes a A200-PMP manifold pressure sensor. This unit can only be used with certified electronic magnetos where the magneto manufacturer states a requirement to use an electronic tachometer that requires a 0-5V square wave signal that previously relied on a signal from a magnetic pickup inserted into a magneto. Field settings allow this instrument to operate with 2,3 and 4 pulses per revolution.
Certification / Compliance
TSO C45b and C49b
Canadian STC
FAA STC
Certified as primary replacement
Environmental
DO-160F A1CAASXXXXXXZBXXBBBCSBA1C11XXAX
Software
DO-178B
DC Power Source
Input voltage 6 to 36 VDC
Power consumption 100mA
Load dump tolerance +60V
Direct spike tolerance +/- 60V
Cable spike tolerance > +/- 1KV
Operating Temperature
Constant operating -15ºC to +55ºC
Short term operating (1hr) -40ºC to +70ºC
Storage -55ºC to +85ºC
Signal Input
Pressure: 0.5V to 3.0V
Tachometer: 0.0V to 5.0V pulse width modulated square wave
Display Units
Manifold Pressure: 0.0 inHg to 50.0 inHg
Tachometer Range: RPM 0 - 9000
Accuracy
Manifold Pressure: AS8042 +/- 0.1inHg
Tachometer: AS404C +/- 1 RPM
Display
Sunlight readable LCD
80º Viewing angle from all directions
Internal and external intensity control
Annunciator Output
100mA sink with reverse EMF protection
Software Functionality
| Primary: | Manifold pressure and Tachometer |
| Trend Graph: | Graphic display of manifold pressure and tachometer data |
| Engine Time: | Display of engine time. Start time set at install. |
Interface Connector
DB-25
Dimensions
2.45” X 2.45” X 0.9”
Weight (excluding harness and sensors)
4.05 oz
Finish
Black anodized 6061 aluminum
