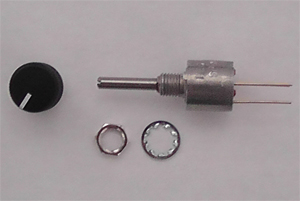

Instrument Intensity Potentiometer - Rev 2 - 5 Instruments ONLY
NOTE: This item is only required for use on products purchased on or AFTER 03-JAN-2013.
This potentiometer will support up to ten instruments in a single installation. It provides infinitely variable, uniform intensity control for all instruments.
These units are TSO qualified with all 200 Series instruments and is STC'd as a primary replacement instrument component under all flight conditions (day/night VFR and IFR).
Certification / Compliance
TSO (various per instrument)
Canadian STC
FAA STC
Certified as primary replacement
Environmental
DO-160F A1CAASXXXXXXZBXXBBBCSBA1C11XXAX
DC Power Source
Input voltage 6 to 36 VDC
Power consumption 10mA (maximum brightness)
Load dump tolerance +60V
Direct spike tolerance +/- 60V
Cable spike tolerance > +/- 1KV
Operating Temperature
Constant operating -15ºC to +55ºC
Short term operating (1hr) -40ºC to +70ºC
Storage -55ºC to +85ºC
Signal Output
0.0V to Bus Voltage
Dimensions
0.5" diameter with 1/4" mounting hole
Weight (including knob)
1.0 oz
