FA200K Fuel Pressure & Ammeter Kit

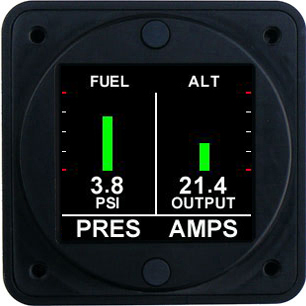

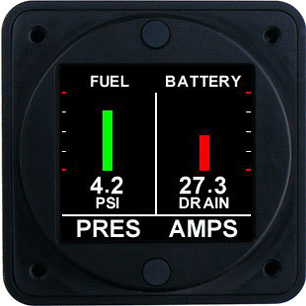

The FA200 is an advanced, next generation fuel pressure and ammeter combinational instrument.
The ammeter portion of the instrument may be used as either a normal function ammeter or a loadmeter. This option is set during installation.
Fuel pressure functionality is TSO'd and meets the pressure accuracy requirements of SAE AS408C. Functional displays include:
- Real-Time analog data depiction and digital value display

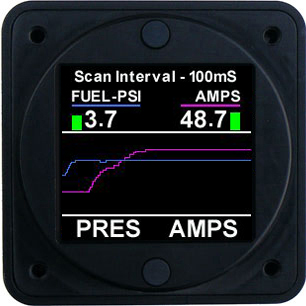

- Graphical trend display of fuel pressure and ammeter data
The FA200K is TSO'd and STC'd as a primary replacement instrument under all flight conditions (day/night VFR and IFR).

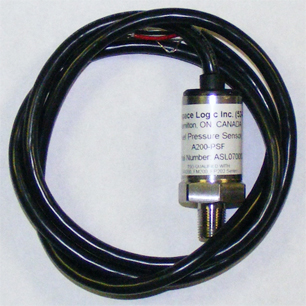

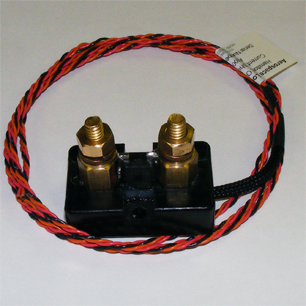

This kit includes an A200-PSF fuel pressure sensor, an A200-HAS Hall Effect current shunt and all installation hardware.
Certification / Compliance
TSO C47a
Canadian STC
FAA STC
Certified as primary replacement
Environmental
DO-160F A1CAASXXXXXXZBXXBBBCSBA1C11XXAX
Software
DO-178B
DC Power Source
Input voltage 6 to 36 VDC
Power consumption 100mA
Load dump tolerance +60V
Direct spike tolerance +/- 60V
Cable spike tolerance > +/- 1KV
Operating Temperature
Constant operating -15ºC to +55ºC
Short term operating (1hr) -40ºC to +70ºC
Storage -55ºC to +85ºC
Signal Input
Pressure 0.5V to 3.0V
Current 0.0V to 3.0V
Display Units
Pressure: 0.0 PSI to 90.0 PSI
Ammeter: +/- 100A
Accuracy
Pressure: AS408C +/- 0.25 PSI
Ammeter: +/- 0.1A
Display
Sunlight readable LCD
80º Viewing angle from all directions
Internal and external intensity control
Annunciator Output
100mA sink with reverse EMF protection
Software Functionality
| Primary: | Fuel pressure, current; charge or discharge |
| Trend Graph: | Graphic display of fuel pressure and current |
Interface Connector
DB-25
Dimensions
2.45” X 2.45” X 0.9”
Weight (excluding harness)
4.05 oz
Finish
Black anodized 6061 aluminum
