FA200VK Fuel Pressure, Ammeter and Voltmeter Kit
The FA200V is an advanced, next generation fuel pressure, ammeter and voltmeter combinational instrument.
The ammeter portion of the instrument may be used as either a normal function ammeter or a loadmeter. This option is set during installation.
Fuel pressure functionality is TSO'd and meets the pressure accuracy requirements of SAE AS408C. Functional displays include:

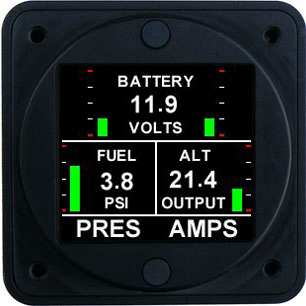

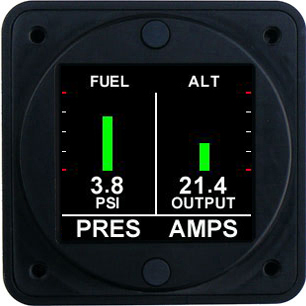

- Real-Time analog data depiction and digital value display (Primary display option 1)
- Voltmeter included in primary display (Primary display option 2)

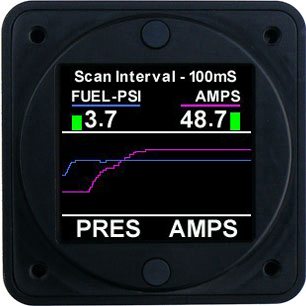

- Graphical trend display of fuel pressure and ammeter data
The FA200VK is TSO'd and STC'd as a primary replacement instrument under all flight conditions (day/night VFR and IFR).

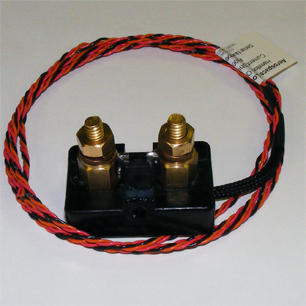

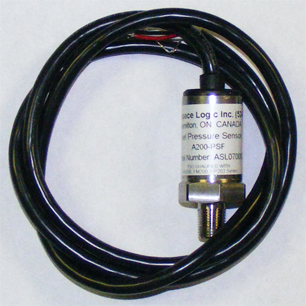

This kit includes an A200-PSF fuel pressure sensor, an A200-HAS Hall Effect current shunt and all installation hardware.
Certification / Compliance
TSO C47a
Canadian STC
FAA STC
Certified as primary replacement
Environmental
DO-160F A1CAASXXXXXXZBXXBBBCSBA1C11XXAX
Software
DO-178B
DC Power Source
Input voltage 6 to 36 VDC
Power consumption 100mA
Load dump tolerance +60V
Direct spike tolerance +/- 60V
Cable spike tolerance > +/- 1KV
Operating Temperature
Constant operating -15ºC to +55ºC
Short term operating (1hr) -40ºC to +70ºC
Storage -55ºC to +85ºC
Signal Input
Pressure 0.5V to 3.0V
Current 0.0V to 3.0V
Display Units
Pressure: 0.0 PSI to 90.0 PSI
Ammeter: +/- 100A
Voltmeter: 6.0V to 36V
Accuracy
Pressure: AS408C +/- 0.25 PSI
Ammeter: +/- 0.1A
Voltmeter: +/- 0.1V
Display
Sunlight readable LCD
80º Viewing angle from all directions
Internal and external intensity control
Annunciator Output
100mA sink with reverse EMF protection
Software Functionality
| Primary: | Fuel pressure, current; charge or discharge |
| Voltmeter: | Voltmeter, fuel pressure, charge or discharge |
| Trend Graph: | Graphic display of fuel pressure and current |
Interface Connector
DB-25
Dimensions
2.45” X 2.45” X 0.9”
Weight (excluding harness)
4.05 oz
Finish
Black anodized 6061 aluminum
