VSI200 Electronic Vertical Speed Indicator
The VSI200 is the most accurate Vertical Speed Indicator available for your aircraft. It exceeds all the requirements of TSO C8e and AS8016A while providing the following functionality:

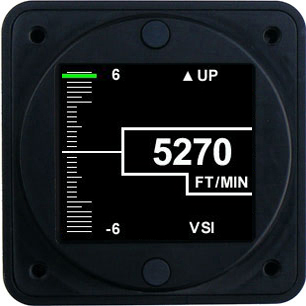

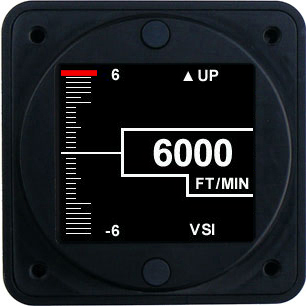

- Installer selectable for 0-2,000fpm, 0-3,000fpm, 0-4,000fpm or 0-6,000fpm rates of change.

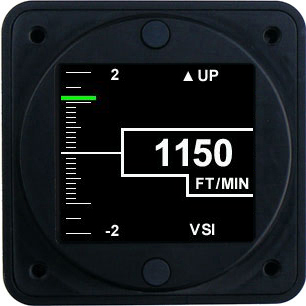

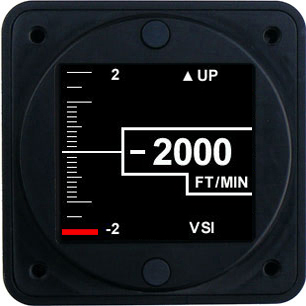

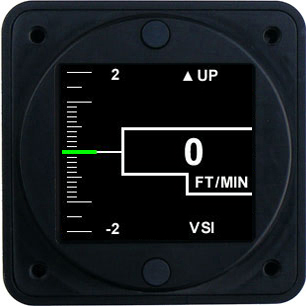

- Graphic bar indication of rate of change
- Precision digital rate of change indication

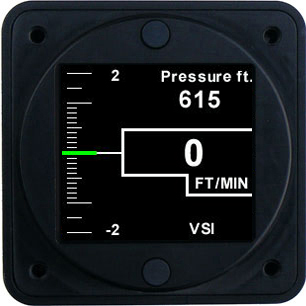

- Instantaneous display of current Standard pressure Altitude
Certification / Compliance
TSO C8e
Certified as primary replacement or for secondary use
Direct replacement for an existing TSO C8 - C8e vertical speed indicator in the same panel hole
Environmental
DO-160E
C1CAASXXXXXXYBXXBBBCSBA1C11XXAX
Software
DO-178B Level C
DC Power Source
Input voltage 6 to 36 VDC
Power consumption 125mA
Load dump tolerance +60V
Direct spike tolerance +/- 60V
Cable spike tolerance > +/- 1KV
Operating Temperature
Constant operating -20ºC to +55ºC
Short term operating (1hr) -40ºC to +70ºC
Storage -55ºC to +85ºC
Display Units VSI
Feet per Minute
Display Units Standard Pressure Altitude
Feet
Accuracy Demonstrated
+/- 10'
Accuracy Certified (Exceeds)
SAE AS8016A
LCD Display
Sunlight readable LCD
80º Viewing angle from all directions
Internal and external intensity control
Interface Connector Electrical
DB-25
Interface Connector Static Port
1/8" NPT
Software Functionality
Rate of climb or descent
Rate of climb or descent and Standard Pressure Altitude
Dimensions Hole
Standard 2 1/4" aircraft mounting hole
Dimensions Enclosure
2.45” X 2.45” X 0.9”
Dimensions Including Pressure Port
2.45” X 2.45” X 1.725”
Weight (excluding harness)
4.30 oz
Finish
Black anodized 6061 aluminum
