OP202K Dual Oil Pressure Kit
The OP202 is an advanced, next generation dual oil pressure combinational instrument.
Oil pressure functionality is TSO'd and meets the pressure accuracy requirements of SAE AS408C.
Functional displays include:

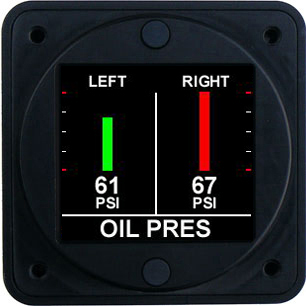

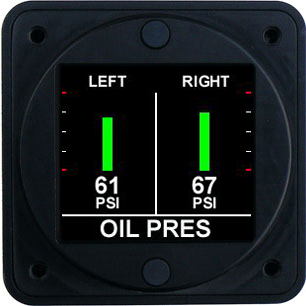

- Real-Time analog data depiction and digital value display for both left and right engines

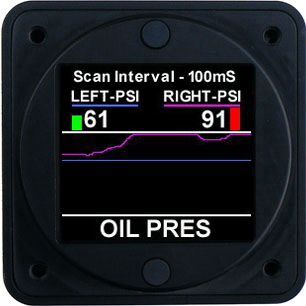

- Graphical trend display of both left and right oil pressure data
The OP202K is TSO'd and STC'd as a primary replacement instrument under all flight conditions (day/night VFR and IFR).

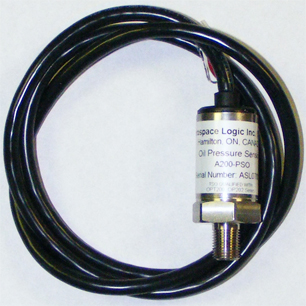

This instrument kit includes two A200-PSO oil pressure sensors and all installation hardware.
Certification / Compliance
TSO C47a
Canadian STC
FAA STC
Certified as primary replacement
Environmental
DO-160F A1CAASXXXXXXZBXXBBBCSBA1C11XXAX
Software
DO-178B
DC Power Source
Input voltage 6 to 36 VDC
Power consumption 100mA
Load dump tolerance +60V
Direct spike tolerance +/- 60V
Cable spike tolerance > +/- 1KV
Operating Temperature
Constant operating -15ºC to +55ºC
Short term operating (1hr) -40ºC to +70ºC
Storage -55ºC to +85ºC
Signal Input
Pressure 0.5V to 3.0V
Display Units
Oil Pressure: 0 - 125PSI
Accuracy
Oil Pressure: AS408C +/- 1PSI
Display
Sunlight readable LCD
80º Viewing angle from all directions
Internal and external intensity control
Annunciator Output
100mA sink with reverse EMF protection
Software Functionality
| Primary: | Left and right oil pressure |
| Trend Graph: | Graphic display of left and right pressure |
Interface Connector
DB-25
Dimensions
2.45” X 2.45” X 0.9”
Weight (excluding harness)
4.05 oz
Finish
Black anodized 6061 aluminum
