The A200-TSA is a monolithic temperature sensor with on-chip signal conditioning and an operating temperature of -50°C to 150°C. It has an accuracy of +/- 0.5°C over the full operating range.
The output voltage is proportional to the temperature x the supply voltage (ratiometric). The output swings from 0.25 V at -50°C to +4.75 V at +150°C using a single +5.0 V supply.
The temperature transfer function is:
VOUT = (V+/5 V) — [1.375 V +(22.5 mV/°C) — TA]
Power requirements are 5V / 1mA.

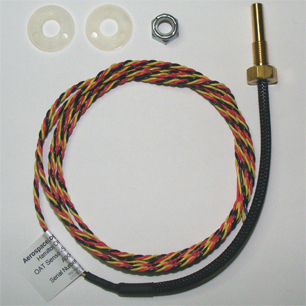

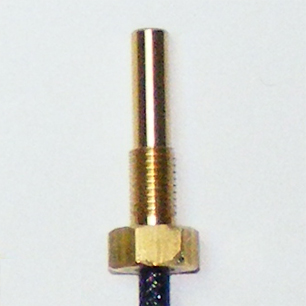

The sensor has a 5/16-24 threaded body and is supplied with two nylon mounting washers and a Nyloc fastening nut.
Supplied with a 48" color coded cable.
When installed in accordance with the approved instructions and as part of a qualified instrument system, this temperature sensor is STC'd as a primary replacement.
For use with the following products:
- CA200X
- CO200X
