A200-HMR Rev 1 - Bendix Speed Sensor 3000 Series Mags

The A200-HMR is an Hall Effect rotational speed sensor. It provides a speed accuracy of 1 RPM when used in conjunction with the TM20X instrument.

The output signal is a latched, pulse width modulated square wave output of 0V to a maximum of 30V, proportional to rotational speed.

Power requirements are 3.8V to 30V / 3mA.

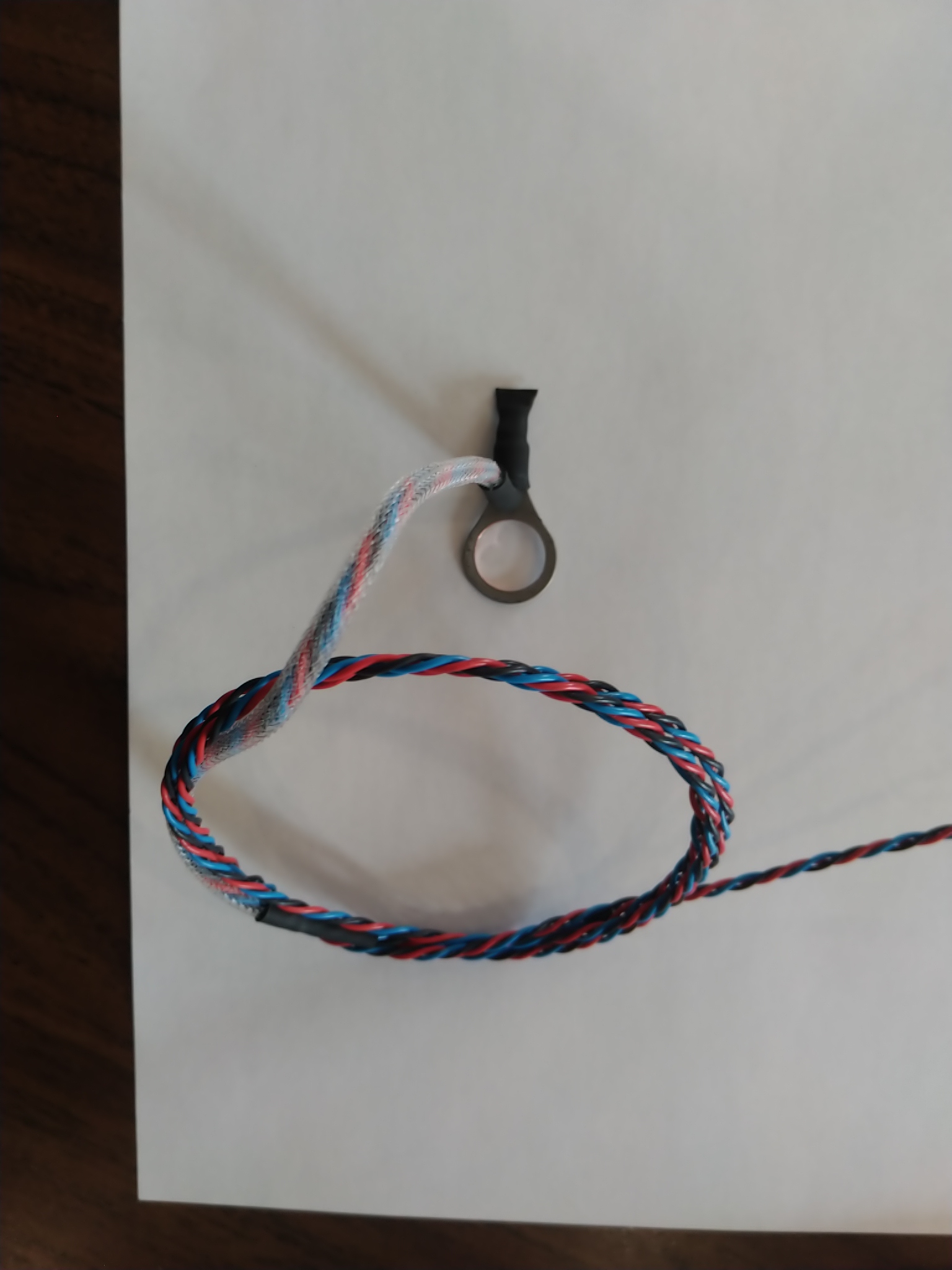

This ring sensor is designed to be placed under the threaded vent hole plug of the magneto. It must be positioned as per the supplied instructions for correct operation.

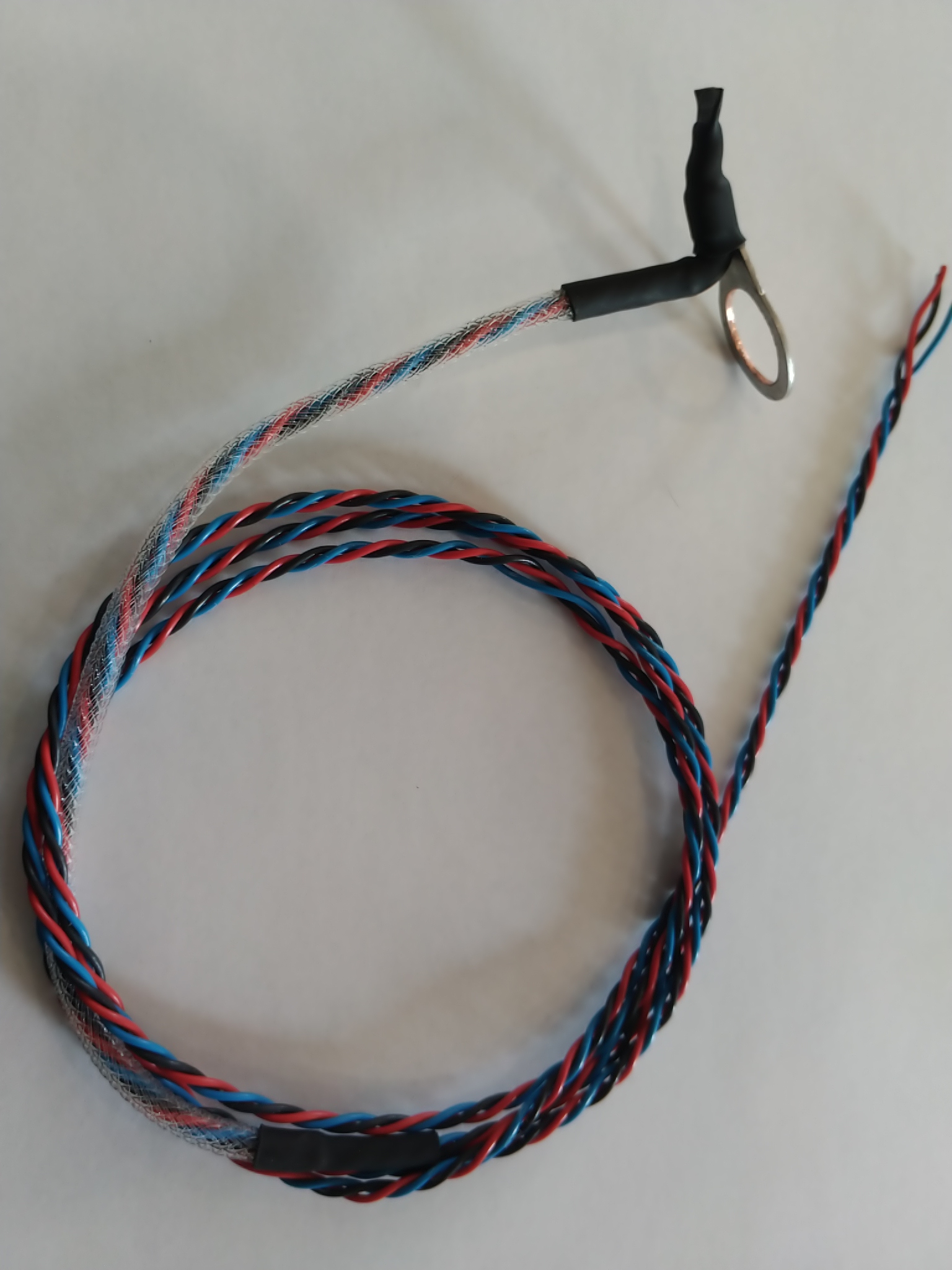

Supplied with a 48" color coded cable.

When installed in accordance with the approved instructions and as part of a qualified instrument system, this speed sensor is STC'd as a primary replacement.

For use with the following products:

• TM20XX
