A200-HMB - Bendix Rotational Speed Sensor

The A200-HMB is an Hall Effect rotational speed sensor. It provides a speed accuracy of 1 RPM when used in conjunction with the TM200 instrument.

The output signal is a latched, pulse width modulated square wave output of 0V to a maximum of 30V, proportional to rotational speed.

Power requirements are 3.8V to 30V / 3mA.

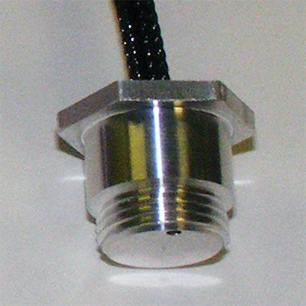

Precision machined from 6061 T6 aircraft grade aluminum, this sensor is designed to thread into the vent hole of Bendix unpressurized magnetos.

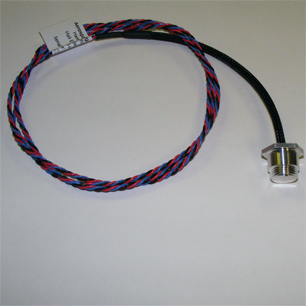

Supplied with a 48" color coded cable.

When installed in accordance with the approved instructions and as part of a qualified instrument system, this speed sensor is STC'd as a primary replacement.

For use with the following products:

• TM200X
