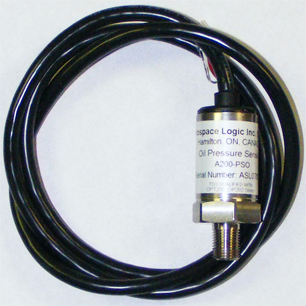

The A200-PSO is a bulk micro-machined, gage type pressure sensor for use in both harsh and benign media with superior accuracy over an operating temperature of -40°C to 105°C. It has superb accuracy of +/- 0.5% full scale.
It contains a custom ASIC which provides signal conditioning for calibration and temperature compensation at the point of measurement. Each sensor is traceable to NIST calibration standards.
Power requirements are 5V / 10mA. Signal output is linear and varies from 0.5V (0 PSI) to 4.5V (200 PSI). Overpressure burst rating is 600 PSI.

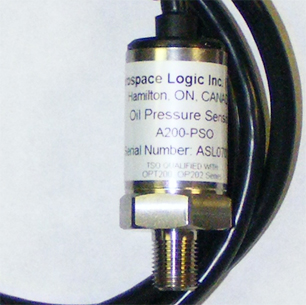

The sensor has a 1/8" NPT threaded port for connection to the oil pressure line.
Supplied with a 36" color coded cable.
When installed in accordance with the approved instructions and as part of a qualified instrument system, this pressure sensor is STC'd as a primary replacement.
For use with the following products:
- OP202XX
- OPT200XX
