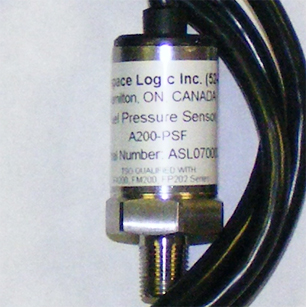

The A200-PSF is a bulk micro-machined, gage type pressure sensor for use in both harsh and benign media with superior accuracy over an operating temperature of -40°C to 105°C. It has superb accuracy of +/- 0.5% full scale.
It contains a custom ASIC which provides signal conditioning for calibration and temperature compensation at the point of measurement. Each sensor is traceable to NIST calibration standards.
Power requirements are 5V / 10mA. Signal output is linear and varies from 0.5V (0 PSI) to 4.5V (100 PSI). Overpressure burst rating is 300 PSI.
The sensor has a 1/8" NPT threaded port for connection to the fuel pressure line.

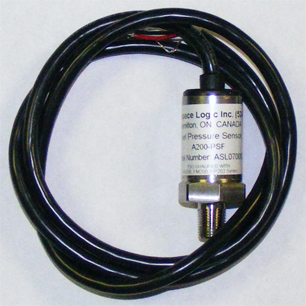

Supplied with a 36" color coded cable.
When installed in accordance with the approved instructions and as part of a qualified instrument system, this pressure sensor is STC'd as a primary replacement.
For use with the following products:
- FA200XX
- FM200XX
- FP202XX
- FP-100-XXX
- OL-100-TX
